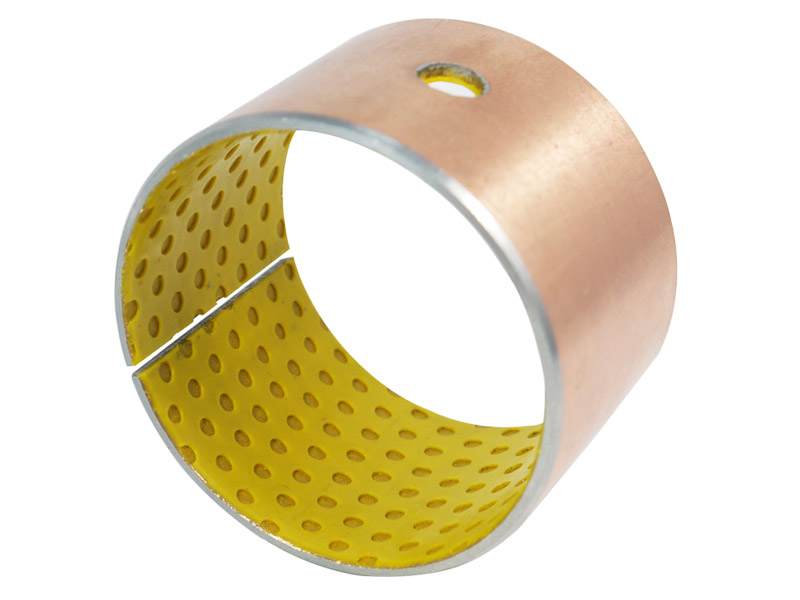

DX Maginal Bushing

1. DX Marginally Lubricated Bearings is for grease or oil lubricated applications.
2. DX Marginally Lubricated Bearings standard parts contain grease indents in the sliding layer, and plain sliding layer is also available on request.
3. DX Marginally Lubricated Bearings has optimum performance under relatively high loads and low speeds.
4. DX Marginally Lubricated Bearings is suitable for linear, oscillating and rotating movements.

►Possible Application:

Automotive:
Steering gear, power steering, pedal bushes, seat slides, king-pin bushes, tailgate pivots, brake caliper bushes, etc.

Industrial:
Mechanical handling and lifting equipment, machine slides, hydraulic cylinders, hydraulic motors, ski-lifts, pneumatic equipment, medical equipment, textile machinery, agricultural equipment, scientific equipment, etc.

►Physical & Mechanical Properties:

Item	Value	Unit
Maximum Operating Temperature Tmax	130	°C
Minimum Operating Temperature Tmin	-140	°C
Maximum Static Load Psta,max	140	N/mm2
Maximum Dynamic Load Pdyn,max	70	N/mm2
Maximum Sliding Speed V-greased	2.5	m/s
Maximum PV Factor-greased	2.8	N/mm2 * m/s
Coefficient of friction f-greased	0.06-0.12

►Usage Range:

dry	poor
oil lubricated	good
grease lubricated	very good
water lubricated	poor
process fluid lubricated	poor
