■ Specifications
■ Technical Data

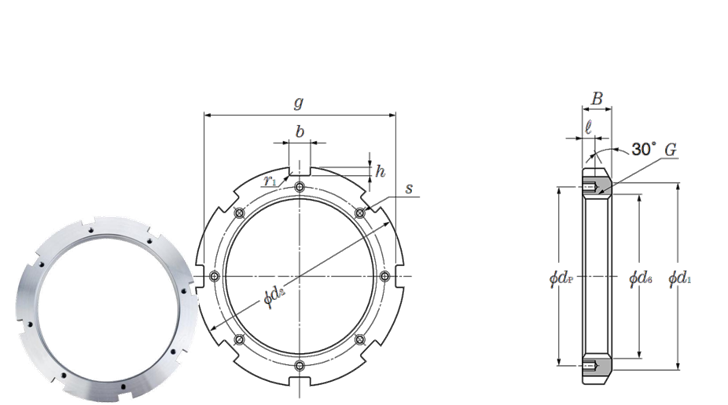

| Lock nut | Dimensions(mm) | Weight (kg) | ||||||||||
| G(1) | d2 | d1 | g | b | h | d6 | B | r1 | L | S(2) | ||
| KML44 | Tr220×4 | 260 | 242 | 242 | 20 | 9 | 222 | 30 | 0.8 | 12 | M6×1 | 3.09 |
| KML48 | Tr240×4 | 290 | 270 | 270 | 20 | 10 | 242 | 34 | 0.8 | 15 | M8×1.25 | 5.16 |
| KML52 | Tr260×4 | 310 | 290 | 290 | 20 | 10 | 262 | 34 | 0.8 | 15 | M8×1.25 | 5.67 |
| KML56 | Tr280×4 | 330 | 310 | 310 | 24 | 10 | 282 | 38 | 0.8 | 15 | M8×1.25 | 6.78 |
| KML60 | Tr300×4 | 360 | 336 | 336 | 24 | 12 | 302 | 42 | 0.8 | 15 | M8×1.25 | 9.62 |
| KML64 | Tr320×5 | 380 | 356 | 356 | 24 | 12 | 322.5 | 42 | 0.8 | 15 | M8×1.25 | 9.94 |
| KML68 | Tr340×5 | 400 | 376 | 376 | 24 | 12 | 342.5 | 45 | 1 | 15 | M8×1.25 | 11.7 |
| KML72 | Tr360×5 | 420 | 394 | 394 | 28 | 13 | 362.5 | 45 | 1 | 15 | M8×1.25 | 12 |
| KML76 | Tr380×5 | 450 | 422 | 422 | 28 | 14 | 382.5 | 48 | 1 | 18 | M10×1.5 | 14.9 |
| KML80 | Tr400×5 | 470 | 442 | 442 | 28 | 14 | 402.5 | 52 | 1 | 18 | M10×1.5 | 16.9 |
| KML84 | Tr420×5 | 490 | 462 | 462 | 32 | 14 | 422.5 | 52 | 1 | 18 | M10×1.5 | 17.4 |
| KML88 | Tr440×5 | 520 | 490 | 490 | 32 | 15 | 442.5 | 60 | 1 | 21 | M12×1.75 | 26.2 |
| KML92 | Tr460×5 | 540 | 510 | 510 | 32 | 15 | 462.5 | 60 | 1 | 21 | M12×1.75 | 29.6 |
| KML96 | Tr480×5 | 560 | 530 | 530 | 36 | 15 | 482.5 | 60 | 1 | 21 | M12×1.75 | 28.3 |
| KML100 | Tr500×5 | 580 | 550 | 550 | 36 | 15 | 502.5 | 68 | 1 | 21 | M12×1.75 | 33.6 |
