■ Specifications
■ Technical Data

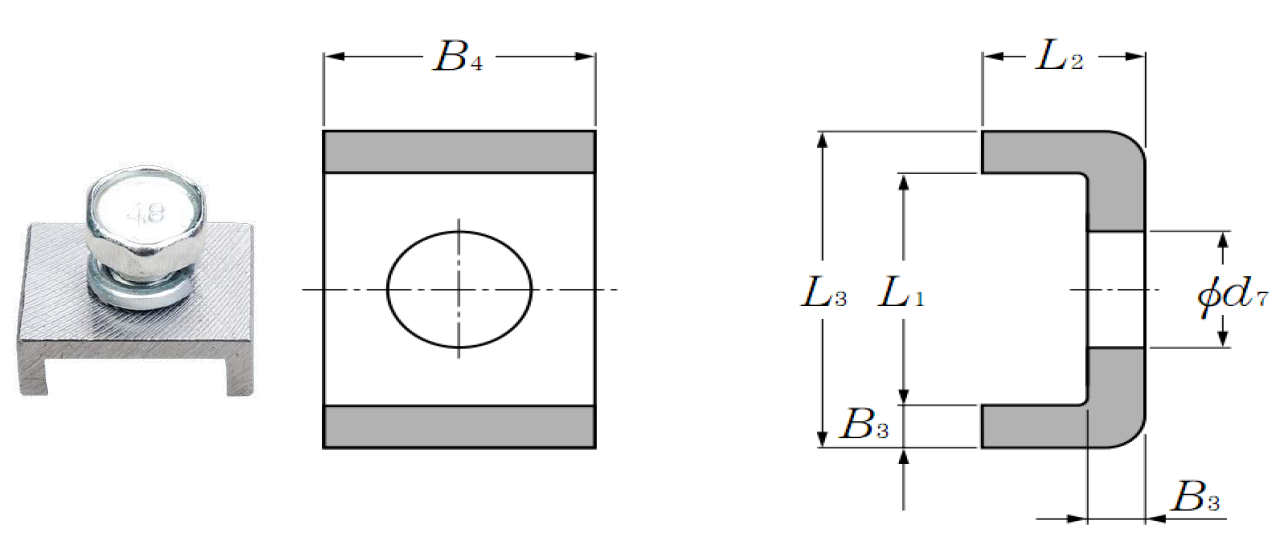

| Lock Card | Dimensions(mm) | Weight (kg) | - | |||||
| B3 | B4 | L2 | d7 | L1 | L3 | |||
| MS44 | 4 | 20 | 12 | 9 | 22.5 | 30.5 | 0.026 | - |
| MS52 | 4 | 24 | 12 | 12 | 25.5 | 33.5 | 0.0339 | - |
| MS60 | 4 | 24 | 12 | 12 | 30.5 | 38.5 | 0.0379 | - |
| MS64 | 5 | 24 | 15 | 12 | 31 | 41 | 0.0535 | - |
| MS68 | 5 | 28 | 15 | 14 | 38 | 48 | 0.0665 | - |
| MS76 | 5 | 32 | 15 | 14 | 40 | 50 | 0.0796 | - |
| MS80 | 5 | 32 | 15 | 18 | 45 | 55 | 0.082 | - |
| MS88 | 5 | 36 | 15 | 18 | 43 | 53 | 0.09 | - |
| MS96 | 5 | 36 | 15 | 18 | 45 | 55 | 0.104 | - |
| MS100 | 5 | 40 | 15 | 18 | 53 | 63 | 0.105 | - |
| Lock Card | Dimensions(mm) | Weight (kg) | - | |||||
| B3 | B4 | L2 | d7 | L1 | L3 | |||
| MSL44 | 4 | 20 | 12 | 7 | 13.5 | 21.5 | 0.0212 | - |
| MSL48 | 4 | 20 | 12 | 9 | 17.5 | 25.5 | 0.0229 | - |
| MSL56 | 4 | 24 | 12 | 9 | 17.5 | 25.5 | 0.0292 | - |
| MSL60 | 4 | 24 | 12 | 9 | 20.5 | 28.5 | 0.0316 | - |
| MSL64 | 5 | 24 | 15 | 9 | 21 | 30 | 0.0456 | - |
| MSL72 | 5 | 28 | 15 | 9 | 20 | 31 | 0.0503 | - |
| MSL76 | 5 | 28 | 15 | 12 | 24 | 34 | 0.0528 | - |
| MSL84 | 5 | 32 | 15 | 12 | 24 | 34 | 0.0611 | - |
| MSL88 | 5 | 32 | 15 | 14 | 28 | 38 | 0.0645 | - |
| MSL96 | 5 | 36 | 15 | 14 | 28 | 38 | 0.0729 | - |
