■ Specifications

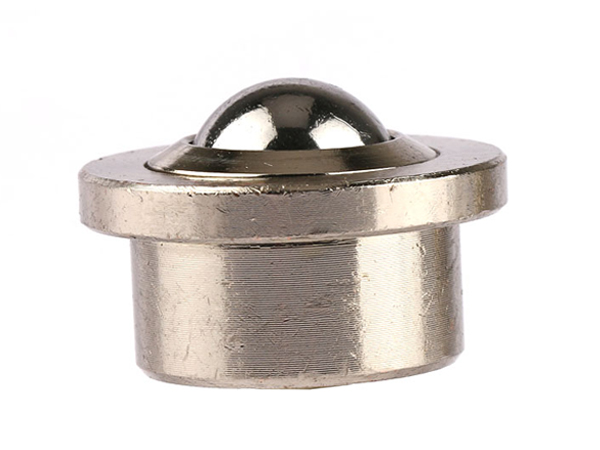

Press Metal Series(CY-A,B,H,T,G) Ball Transfer Units mainly used in turn part of the delivery system, merging part, and the items in the horizontal direction easily turn, have a logistics, transportation, energy, universal characteristics.
Universal ball products, mainly used in turn part of the delivery system, merging part, and the items in the horizontal direction easily turn, have a logistics, transportation, energy, universal characteristics.
The main production of universal ball on the steel structure for the bottom flange by two mounting holes for easy installation, fit ball up the occasion, there is the multi-purpose structure UFO flange also has two mounting holes, very easy to install, steel ball diameter.
More detail：Press Metal Series(CY-A,B,H,T,G) Ball Transfer Units.PDF
Universal ball products, mainly used in turn part of the delivery system, merging part, and the items in the horizontal direction easily turn, have a logistics, transportation, energy, universal characteristics.
The main production of universal ball on the steel structure for the bottom flange by two mounting holes for easy installation, fit ball up the occasion, there is the multi-purpose structure UFO flange also has two mounting holes, very easy to install, steel ball diameter.
More detail：Press Metal Series(CY-A,B,H,T,G) Ball Transfer Units.PDF
■ Technical Data
| Model No. | ||
| CY-12A | CY-30B | CY-25T |
| CY-15A | CY-38B | CY-15TA |
| CY-18A | CY-8H | CY-19TB |
| CY-25A | CY-8HH | CY-25TB |
| CY-25A2 | CY-12H | CY-19C |
| CY-25A3 | CY-12HH | CY-25G |
| CY-30A | CY-15H | CY-25G2 |
| CY-38A | CY-22H | CY-25G3 |
| CY-12B | CY-25H | CY-19D |
| CY-16B | CY-30H | CY-25D |
| CY-16B2 | CY-40H | CY-19FL |
| CY-16BB | CY-25E | CY-25FL |
| CY-19B | CY-25FE | CY-25FLB |
| CY-22B | CY-38FE | CY-40FL |
| CY-25B | CY-12T | CY-25F |
| CY-25B2 | CY-15T | CY-25HF |
How to choose a ball transfer unit?
- Maximum Loading Capacity = (weight of article)/3 or 9
- Maximum Spacing = (article width)/3.5; (article length)/3.5
How to arranging and installing ball transfer units?
- There are different arranging ways to fit for different moving requirements:
- There are different models of BTU fo choosing:
Applications
- Typical application in production lines:
- Typical application in goods handling:
Ball transfer units table in Dubai International Airport
Ball transfer units table in Dubai International Airport
How to delivery?
- Gross weight lower than 50kgs, we suggest delivery by courier like DHL, TNT or others
- Gross weight between 50kgs and 120kgs, we suggest delivery by aircargo
- Gross weight over 120kgs, it can be delivered by sea shipping
