Machined Steel Heavy (SP,SP-FL,KSM,KSM-FL)

Specifications
Technical Data
Inquiry

■ Specifications

Machined Steel Heavy Series(SP,SP-FL,KSM,KSM-FL) Suitable for high speed operation, very durable, without frequent maintenance. The friction coefficient of such bearings, high speed limit, simple structure, low manufacturing costs, easy to achieve high manufacturing accuracy.
More detail：Machined Steel Heavy Series(SP,SP-FL,KSM,KSM-FL).PDF

■ Technical Data

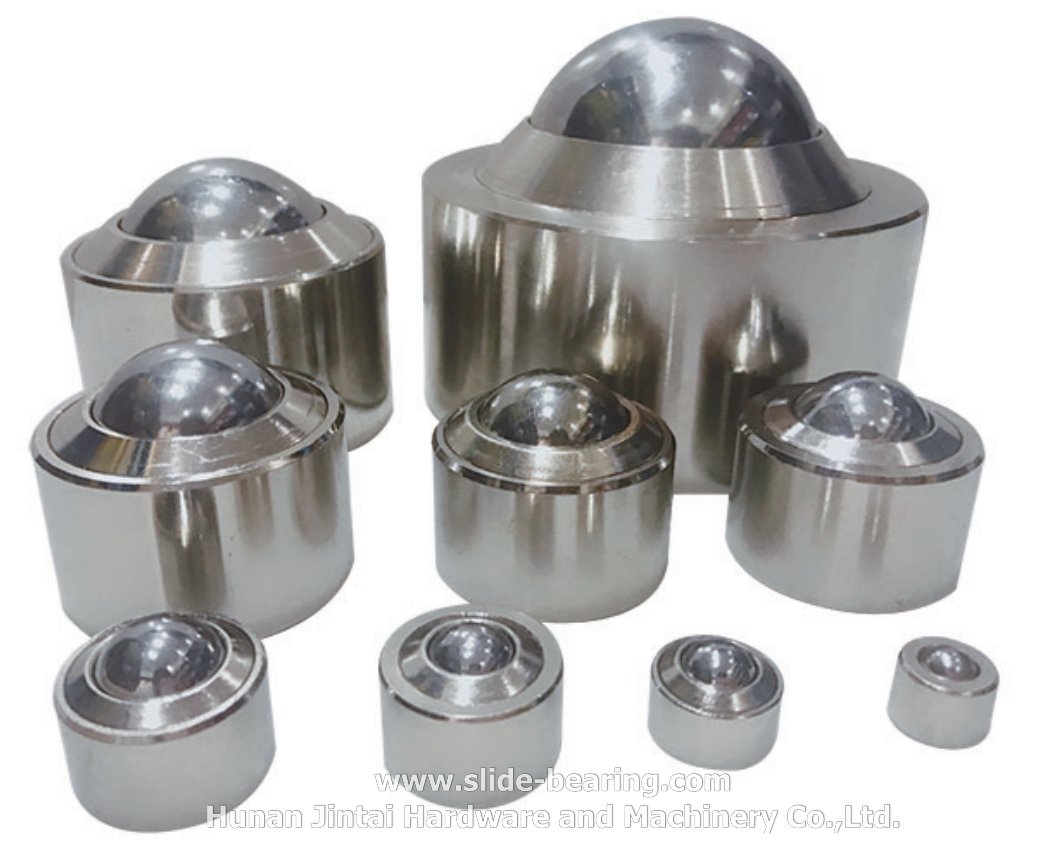

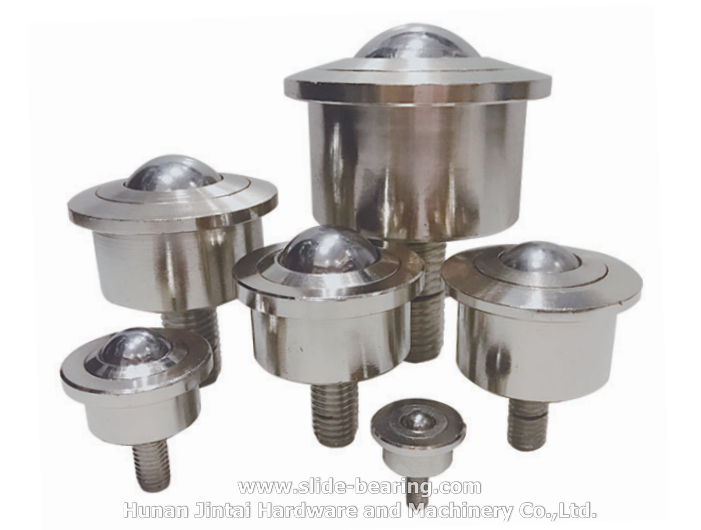

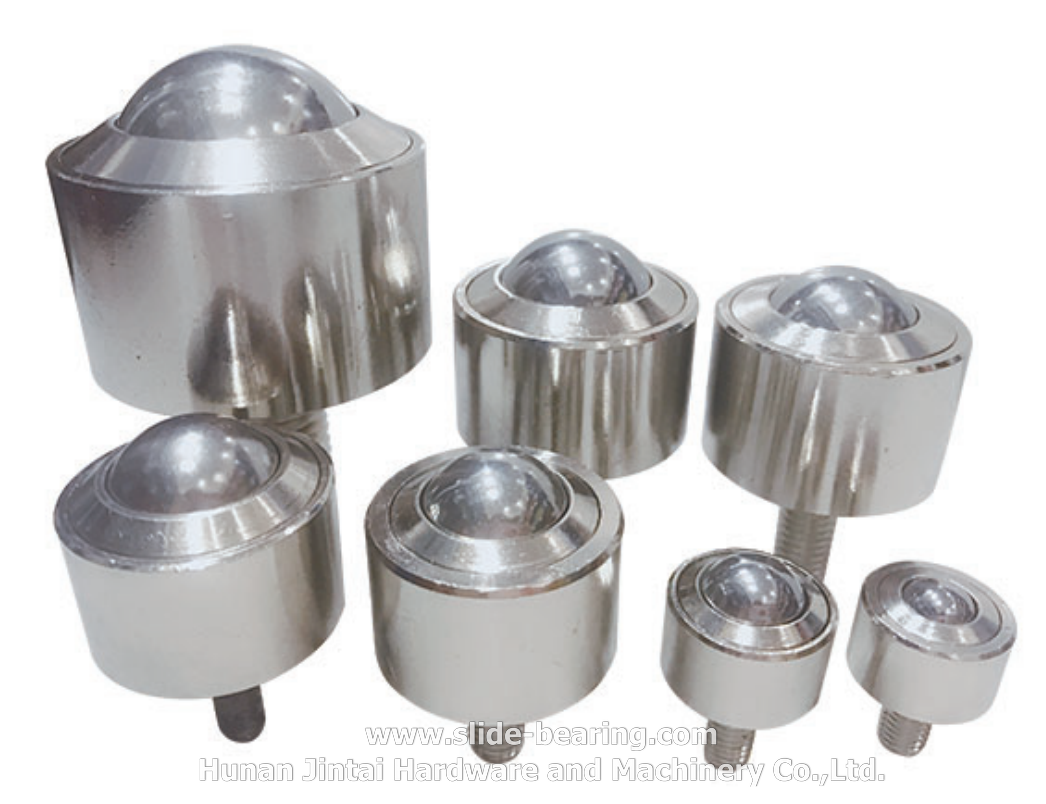

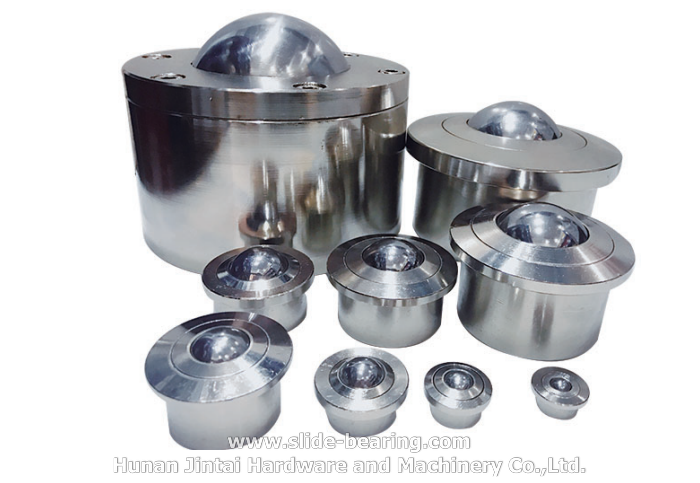

Machined Steel Heavy Series(SP,SP-FL,KSM,KSM-FL) Ball Transfer Units

Model No.
SP-8	KSM-8
SP-12	KSM-10
SP-15	KSM-12
SP-19	KSM-15
SP-22	KSM-22
SP-25	KSM-25
SP-30	KSM-30
SP-38	KSM-38
SP-45	KSM-45
SP-60	KSM-60
SP-76	KSM-8FL
SP-90	KSM-12FL
SP-100	KSM-15FL
SP-150	KSM-22FL
SP-8FL	KSM-25FL
SP-15FL	KSM-30FL
SP-22FL	KSM-38FL
SP-25FL
SP-25FK
SP-30FL
SP-38FL
SP-45FL
SP-60FL

How to choose a ball transfer unit?

Maximum Loading Capacity = (weight of article)/3 or 9

Maximum Spacing = (article width)/3.5; (article length)/3.5

How to arranging and installing ball transfer units?

There are different arranging ways to fit for different moving requirements:

There are different models of BTU fo choosing:

Applications

Typical application in production lines:

Typical application in goods handling:

Ball transfer units table in Dubai International Airport

How to delivery?

Gross weight lower than 50kgs, we suggest delivery by courier like DHL, TNT or others
Gross weight between 50kgs and 120kgs, we suggest delivery by aircargo
Gross weight over 120kgs, it can be delivered by sea shipping
