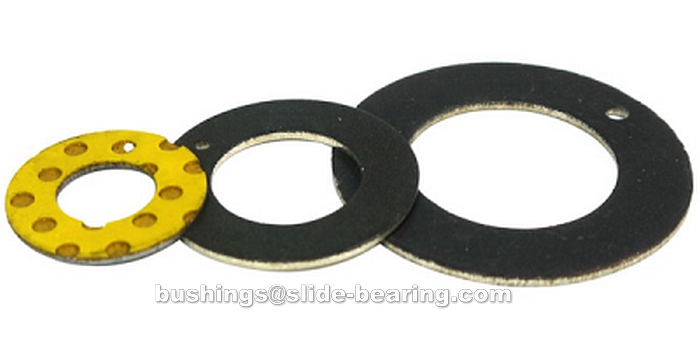

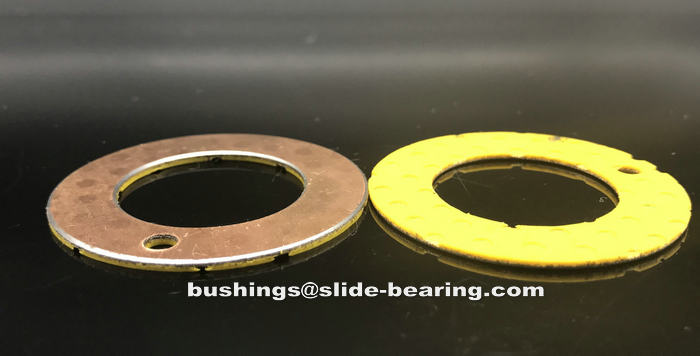

Thrust Washer , POM, Low carbon steel, polymer thrust washer, thrust bearing washer

Product Details

Place of Origin:made in china

Brand Name:JINTAI/NONE

Certification:ISO 3547 DIN 1494

Model Number:Thrust Washer

Payment & Shipping Terms:

Minimum OrderQuantity:negotiable

Price:Negotiable

Packaging Details:EXPORT CARTON WOOD PALLET WOODEN CASE

Delivery Time:7-25 work days

Payment Terms:T/T

Supply Ability:9000000 Piece/Pieces One week

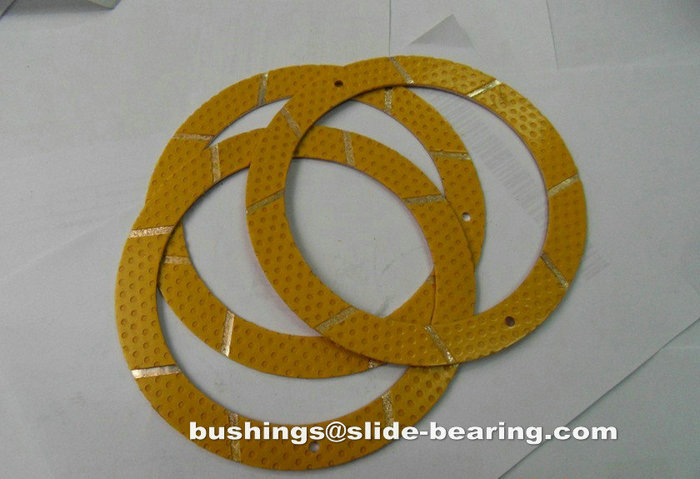

1.The mixture of modified polyformaldehyde (POM) and lead has high wear resistance and low friction coefficient even in the case of instant oil shortage. The bearing surface is regularly arranged with a spiral Angle of the oil storage pit, assembly, must be coated with grease.

2. The copper powder layer of 0.2-0.3mm has good bearing capacity and wear resistance, and good thermal conductivity can transfer the heat generated during the operation of the bearing in time. The composite material can penetrate into the gap of the copper powder ball and improve the bonding strength.

3. Low carbon steel 0.4~2.2, improve the bearing capacity and heat transfer function of the bearing.

4. Copper/tin electroplating, copper coating 0.008mm, tin coating 0.05mm, so that the bearing has a good corrosion resistance function.Composite bearing: boundary lubricated bearing is made of high quality low carbon steel plate, with sintered spherical bronze powder in the middle, surface rolling modified polyambrose (POM) and oil storage pit. Good bearing capacity, good wear resistance. It is suitable for normal temperature conditions and low speed heavy loading places, replace the traditional copper sleeve, both reduce the cost and extend the service life. In the boundary lubrication condition for a long time without oiling maintenance, but in the overlayer oiling makes the bearing service life longer. The surface plastic can keep a certain amount of margin when it is processed and molded, and can be processed by itself after it is assembled and pressed into the seat hole, so as to achieve a better assembly size.It is widely used in automobile chassis, forging and pressing machine, metallurgy and mining machinery, engineering machinery, water and electricity, steel rolling industry and other fields. The product surface does not contain lead, the use domain may extend to has the environmental protection request domain.

Maximum bearing pressure (static): 250 N/mm2

Maximum bearing pressure (dynamic): 140N/mm 2

Friction coefficient (grease lubrication) : 0.05 ~ 0.25

Maximum sliding speed (grease lubrication) : 2.5m/s

Maximum PV value (grease lubrication) : 2.8n/mm2. M/s

Operating temperature: -40℃~+130℃

DX0606, DX0608, DX0610, DX0806, DX0808, DX0810, DX1010, DX1012, DX1015, DX1020, DX1210, DX1212, DX1220, DX1225, DX1310, DX1412, DX1415, DX1420, DX1425, DX1510, DX1512, DX1515, DX1520, DX1625, DX1610, DX1710, DX1712, DX1720, DX1810, DX1812, DX1815, DX1820, DX1825, DX2012, DX2015, DX2020, DX2025, DX2030, DX2210, DX2212, DX 2215, DX2220, DX2225, DX2230, DX2415, DX 2420, DX 2425, DX 2512, DX 2515, DX 2525, DX 2525, DX 2540, DX 2550, DX 2815, DX 2820, DX 2840, DX 3012, DX 3015, DX 3025, DX 3030, DX 3030, DX 3040, DX 3220, DX 3230, DX 3240, DX 3512, DX 3515, DX 3525, DX 3540, DX 3550, DX3815, DX 3830, DX 3840, DX 4025, DX 4040, DX 4050, DX 4520, DX 4525, DX 4540, DX 4550, DX 5020, DX 5030, DX 5040, DX 5050, DX 5060, DX 5530, DX 5540, DX 5560, DX 6040, DX 6060, DX 6060, DX 6060, DX 6530, DX 6540, DX 7040, DX 7060, DX 7060, DX 7060, DX 7080, DX 7530, DX 7540, DX 7550, DX 7560, DX 7570, DX 7580, DX 8040, DX 8060, DX 8080, DX 80100, DX 8540, DX 8560, DX 8580, DX 85100, DX9040, DX 9050, DX 9060, DX 9080, DX 90100

Application field

JIntai is one of the solid enterprises in China specialized in producing self-lubricating bearing, sliding bearing, composite bearing, oil-free bearing, dry bearing and maintenance-free bearing. The quality and performance of the products have reached the level of foreign counterparts.

Agricultural machinery and food machinery

Tractors, combine harvesters, baling machines (of hay, straw, etc); Baling press, meat processing equipment, potato harvester, spray machine, grain dryer, planting equipment, brewing equipment, etc.

The car industry

In the typical application of the industry include: throttle, brake and clutch pedal, mirror adjustment mechanism, wipers, Windows hoisting mechanism, skylight organization, joystick, seat belt tensioning mechanism, seat adjustment mechanism, shock absorber, engine, suspension, carburetor, door hinge, suitcase, hood hinge, with tie rod and the ball head, throttle valve, steering column and steering device, etc.

Home appliances, commercial appliances, hospital equipment

Air conditioning, vacuum cleaner, dishwasher, sewing machine, washing machine, refrigerator, copier, printer, scanner, mail processing system, letter sorting device, dental equipment, X-ray equipment, operating table, etc.

Hydraulic industry

Gear pump, water pump, piston pump, ball valve, butterfly valve, mixing valve, control valve, reciprocating air compressor, hydraulic brake, centrifugal compressor, hydraulic cylinder, etc.

Construction machinery, machinery industry

Excavators, hydraulic lifts, concrete mixers, fork-lift trucks, hydraulic cylinders, belt tensioning devices, cranes, mortar trucks, pallet fork-lift trucks, pneumatic lifts, bulldozers, escalators, pedestrian walkways, heavy trailers, liquid infusion equipment, side loaders, etc.

Other applications

Bicycles, motorcycles, tools, spinning machines, reciprocating saws, cutting machines, textile machines, weaving machines, button machines, packaging systems, nailing machinery equipment, glass manufacturing equipment, etc.
